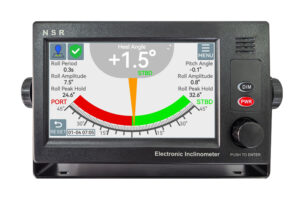

NEI-3000 ELECTRONIC INCLINOMETER
NSR’s new Electronic Inclinometer:
– Meet the IMO and ISO standards
– High accuracy and stability
– Large color LCD, touch screen operation
– Android O/S for easy operation
– Log for Heel Angle and Pitch Angle
– Data interface to BAM/INS
– Type approval with DNV (MED) and CCS
- Descripción
- Información adicional
- Valoraciones (0)
- SPECIFICATIONS
- Más productos
- Políticas de la tienda
- Consultas
Descripción
【FEATURES】
NSR’s new electronic inclinometer:
– High accuracy and stability.
– Large color LCD, touch screen operation.
– Android O/S for easy operation.
– Data interface to BAM/INS.
– Measures and displays heel angle, roll period, roll amplitude and pith angle etc.
– Additional log of heel angle for the latest 3 minutes and roll amplitude for the latest 30 minutes.
– Meet the IMO and ISO standards，such as IMO MSC.363 (92), IMO MSC.302 (87) and ISO 19697.
– DNV type approval.
– CCS type approval.
Información adicional
| Peso | 23 lbs |
|---|---|
| Dimensiones | 12 × 24 × 35 in |
Sé el primero en valorar “NEI-3000 ELECTRONIC INCLINOMETER”
| Heel Angle: | Range: ± 90°, Accuracy: ±1° |
| Roll Amplitude: | Range: ± 90°, Accuracy: ±1° |
| Roll Period: | Range: 4~ 40 sec, Accuracy: ±1s |
| Pith Angle: | Range: ± 90°, Accuracy: ±1° |
| O/S: | Android |
| LCD Display: | Touch screen operation |
| LCD Size: | 7 inch |
| Resolution: | 1024×600 |
| Interface: | I/O sentence (IEC 61162-1 & IEC 61162-2) |
| Power Supply: | DC 24V (range 9V ~ 36V) |
| Power Consumption: | <10W |
| Size: | 145 (H) × 264 (W) × 83 (D) mm (Display Unit) |
| Weight: | 1.3 kg (Display Unit), 0.7 kg (Sensor Unit) |
| Compass Safe Distance： | Standard Compass: 0.25m, Steering Compass: 0.15m (Display Unit)Standard Compass: 0.20m, Steering Compass: 0.10m (Sensor Unit) |
| IP Grade: | IP22 |
