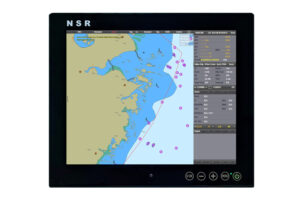

NDU-190/240/260 MARINE DISPLAY

0 out of 5

– Compliant with IEC 60945 standard.

– Displays for a wide range of applications such as ECDIS and radar.

– Multi-size Displays to satisfy different vessels.

– Large color LCD with touch screen operation.

– Receives and displays the VGA/DVI/HDMI/AUDIO signals from the main unit.

– Dual power supply (AC 100V ~ 230V, DC 24V), automatic switching.

– Brightness control on the panel, convenient for night navigation.

Consultar

Descripción

【FEATURES】

NSR’s new electronic inclinometer:

– High accuracy and stability.

– Large color LCD, touch screen operation.

– Android O/S for easy operation.

– Data interface to BAM/INS.

– Measures and displays heel angle, roll period, roll amplitude and pith angle etc.

– Additional log of heel angle for the latest 3 minutes and roll amplitude for the latest 30 minutes.

– Meet the IMO and ISO standards，such as IMO MSC.363 (92), IMO MSC.302 (87) and ISO 19697.

– DNV type approval.

– CCS type approval.

Peso	23 lbs
Dimensiones	12 × 24 × 35 in

No hay valoraciones aún.

ITEM	NDU-190	NDU-240	NDU-260
Display	19-inch color LCD	24-inch color LCD	26-inch color LCD
Effective Area	374.8 (H) x 299.8 (V) mm	527.0 (H) x 295.4 (V) mm	597.8 (H) x 336.3 (V) mm
Resolution	SXGA (1280 x 1024)	HD (1920 x 1080)	HD (1920 x 1080)
Brightness	400 nits	600 nits	350 nits
Contrast	700:1
View Angle	170
Interface	RGB Analog x 1, DVI-D x 1, HDMI x 1, USB x 3, Audio Signal x 1, M/B x 1 (for restart)
Power Supply	100-230VAC /0.5A, 30W 24VDC /1.5A, 30W	100-230VAC /0.6A, 40W 24VDC /2A, 45W	100-230VAC /0.5A, 30W 24VDC /1.5A, 30W
Weight (without Bracket)	8.25kg	9.8kg	12.5kg
Environmental Conditions	Operating Temperature: -20℃ ~ +70℃ Storage Temperature: -25℃ ~ +70℃ Humidity: ≥90% RH (38°C)
Compass Safe Distance：	Standard Compass: 0.70m Steering Compass: 0.40m	Standard Compass: 0.85m Steering Compass: 0.40m	Standard Compass: 0.80m Steering Compass: 0.45m
