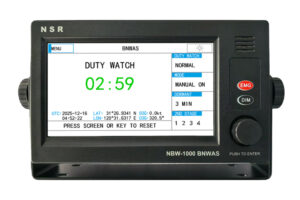

NBW-1000 BNWAS
– Displayed with 7-inch color LCD
– ON/OFF history record
– Alarm tone selectable
– Routine test available
– Password set by menu
– Data interface to BAM/INS
– Type approval with DNV (MED) and CCS
- Descripción
- Información adicional
- Valoraciones (0)
- SPECIFICATIONS
- Más productos
- Políticas de la tienda
- Consultas
Descripción
– Conforms to the latest rules, including IMO MSC 128 (75), IMO MSC302 (87), IEC62616, IEC 62923-1, IEC 62923-2 and IEC 62288.
– 7-inch color LCD used in control unit.
– Automatically record ON/OFF and mode change history.
– Pre-stored tones selectable for alarm.
– Password used to set operation mode and dormant time.
– 2nd alarm units can be selected seperately.
– Test function and emergency call available.
– Date interface to BAM/INS.
– CCS type approval.
– DNV type approval.
Información adicional
| Peso | 23 lbs |
|---|---|
| Dimensiones | 12 × 24 × 35 in |
Sé el primero en valorar “NBW-1000 BNWAS”
| Mode: | Manual On, Manual Off |
| Alarm: | Visual, 1ST stage audio, 2ND stage audio , 3RD stage audio |
| Dormant: | 3～12 minutes (selectable) |
| Accuracy: | ±5s |
| Sound: | 75~85dB (A) |
| Power Input: | DC24V, AC 100V ~ 240V |
| Input Port: | RS422 x 1 port , RESET ON/OFF x 9CH |
| Output Port: | RS422 x 1 port , ALARM x 10CH, FAILURE ALARM OUTPUT x 1CH |
| Compass Safe Distance: | Standard Compass: 0.55m, Steering Compass: 0.36m |
| IP Grade: | IP22 (Control Unit, Junction Box, Alarm Unit), IP56 (Reset Unit) |
