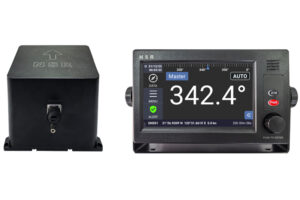

NGC-50X0 GYRO COMPASS
NSR’s new products of Fiber Optic Gyrocompass:
– 4 models with heading accuracy up to ≤ 0.1° x secφ
– Short settling time and flexible operating modes
– Large 7-inch color LCD with touch screen operation
– Data interface to BAM/INS
– Maintenance-free design
– Suitable for HSC
– Dual compass available
– Type approval with DNV (MED) for both gyro compass
and ROT indicator
NGR-3000 DNV
- Descripción
- Información adicional
- Valoraciones (0)
- SPECIFICATIONS
- Más productos
- Políticas de la tienda
- Consultas
Descripción
【FEATURES】
NSR’s new products of Fiber Optic Gyrocompass:
– 4 models with heading accuracy up to ≤ 0.1°x secφ.
– Short settling time and flexible operating modes.
– Advanced optical technology and signal processing algorithms adopted.
– Highly accurate HDG.
– Large 7-inch color LCD.
– Touch screen operation.
– Data interface to BAM/INS.
– Multi-outputs of RS422.
– Maintenance-free design.
– Suitable for HSC.
– Dual compass available.
– Compliant with the standards of IMO A.424 (XI), IMO A.821 (19), IMO A.694 (17), ISO 8728:2024 and ISO 16328:2014, etc.
– DNV type approval.
Información adicional
| Peso | 23 lbs |
|---|---|
| Dimensiones | 12 × 24 × 35 in |
Sé el primero en valorar “NGC-50X0 GYRO COMPASS”
| Settling Time | 10 min |
| Heading Accuracy | NGC-5010: ≤0.1° secφNGC-5030: ≤0.3° secφ
NGC-5050: ≤ 0.5° secφ NGC-5070: ≤0.7° secφ |
| Power Supply | AC 220V, DC 24V |
| Power Consumption | ≤55W |
| Display | 7-inch, color LCD, touch screen operation, Android O/S
154 (W) × 87 (H) mm, 1024 × 600 dots resolution |
| Interface | External Compass, Repeater, Heading Out, Sensor Input, Alarm System, BAM/INS, Printer, RJ45 |
| Ambient Temperature | -20°C ~ +55°C operational |
| Compass Safe Distance | Standard: 0.30m, Steering: 0.05m (Compass Unit)
Standard: 0.35m, Steering: 0.20m (Interface Unit) Standard: 0.25m, Steering: 0.10m (Display Unit) Standard: 0.25m, Steering: 0.15m (Remote Unit) Standard: 0.45m, Steering: 0.30m (Rot Indicator) Standard: 0.55m, Steering: 0.35m (Steering Repeater) Standard: 0.45m, Steering: 0.25m (Bearing Repeater) |
| IP Grade | IPX6 (for NGC-519), IP22 (for other items) |
